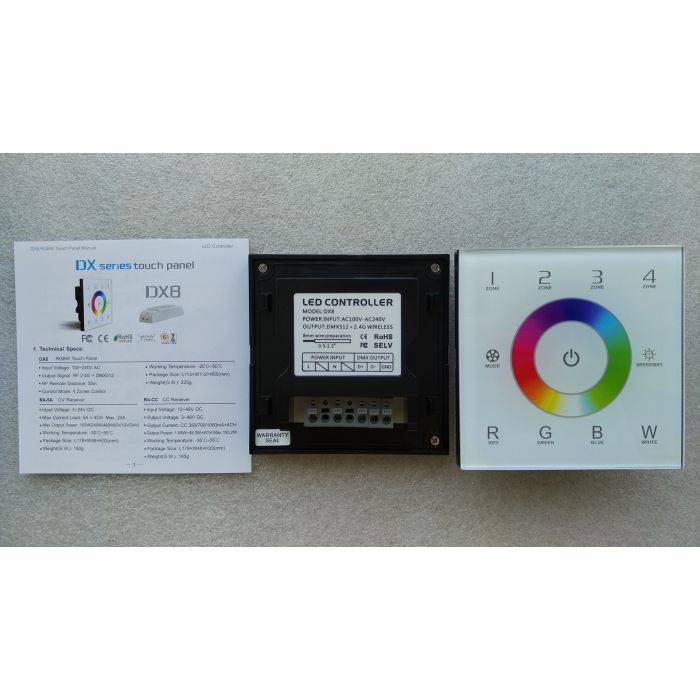

LTech DX8 RGBW 4 zones DMX in-wall touch panel LED controller
- Buy 51 for $28.75 each and save 10%
Made in Zhuhai of China, reliable quality with 5 years warranty
Direct from factory, good price, we are distributor of LTech controllers
RGBW quad colors control
The 4 channels DMX512 RGBA or RGBW controller will drive any of our RGB flexible strip lighting with the added advantage of driving a fourth channel of either white or amber.
DMX512 compliant control interface, manual/automatic addressable and address shows via numerical digital
4-channel output selectable, maximum 5A per channel
Input voltage: AC 100~240V
Output signal: RF 2.4G + DMX512
RF remote distance: 30 meters
Remote option: 4 zones control
Output signal current: 20A
Working temperature: -20℃~60℃
Package size: L113×W112×H50mm
Net weight: 225g
Click here to check the detailed use manual of this DMX touch panel controller
How to operate zone button
Connection Diagram (Connect to DMX Decoder):
Connection diagram (connect to 2.4G RF wireless R4-5A receiver controller):
