LTech M4-E 4 channels DC12-48V constant voltage DMX RDM Decoder
- Buy 500 for $10.75 each and save 5%

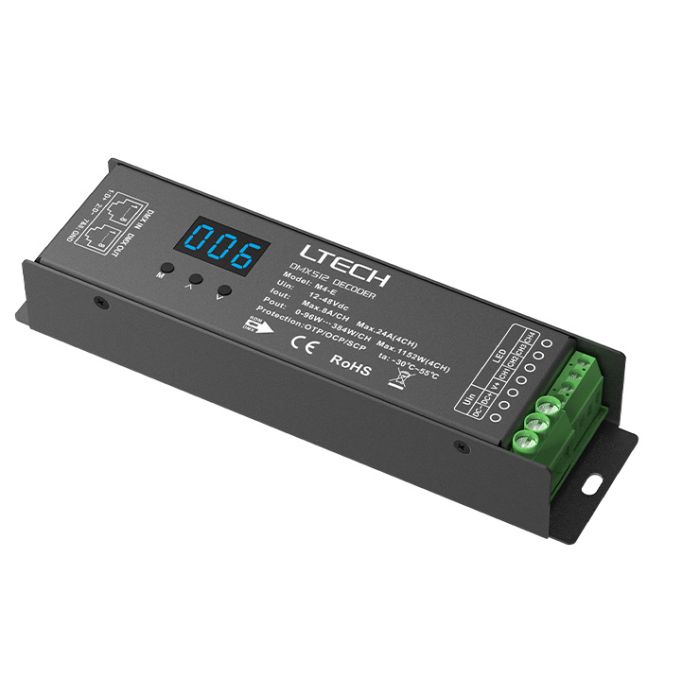

LTech M4-E
Made in Zhuhai of China, 5 years warranty, high quality
We are distributor of LTech products, direct from factory, good price
LTech M4-E
With the standard RDM (Remote Device Management) protocol, M4-E supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX addresses (DMX master controller must support the RDM protocol). It realizes 0-100% dimming or different lighting effects. It can work with DIM, CT, RGB, RGBW constant voltage LED lamps. M4-E can be operated in DMX mode or in customized mode.
Input Signal: DMX512, RDM
Input Voltage: 12-48Vdc
Output Current: Max.8A/CH Max.24A(4CH)
Output Power: 0-96W...384W/CH Max.1152W(4CH)
Dimming Range: 0-100%
DMX Signal Port: RJ45
Working Temp: -30°C-55°C
Dimensions: L175×W46×H30(mm)
Package Size: L187×W52×H36(mm)
Weight(G.W.): 325g±5%
Protection: Short circuit, over temperature, over current protection, auto recovery.
