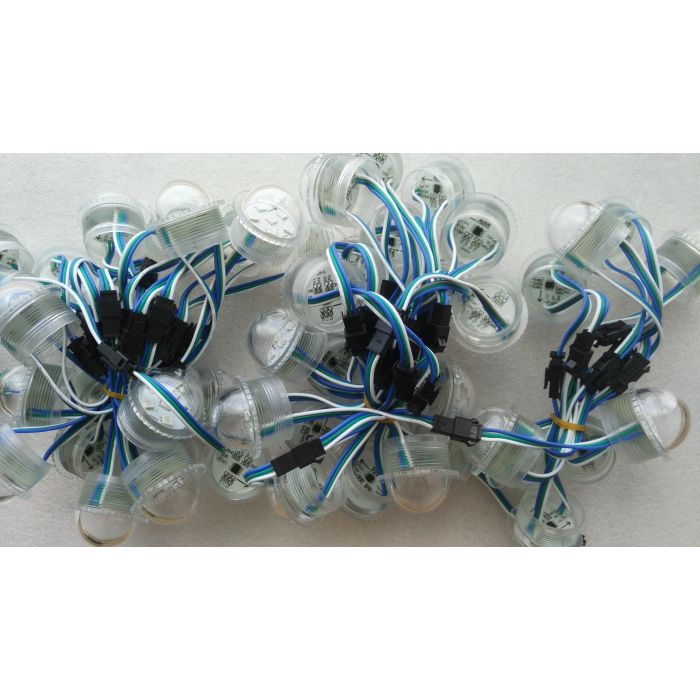

36mm waterproof 12V UCS2903 RGB 5050 LED point light
- Buy 1000 for $1.40 each and save 7%
We are LED light factory which can supply customized LED light products, for big quantity products, please contact us
Made in Shenzhen of China, reliable quality with 2 years warranty
 Â
Parameter
1) Voltage: DC 12V
2) IC type: UCS2903
3) IC quantity: 1 piece per light
4) LED type: SMD 5050Â RGB
5) LED quantity: 6 or 9 piece per light, 6 LEDs are default
6) Pixel: each module is one pixel
7) Max power: 1.44W or 2.16W/piece
8) Bit: 8
9) Greyscale: 256 levels
10) Diameter: 36mm, clear transparent cover, IP65 waterproof protection
12) Wire length: 100mm
 Â
Connection
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2811 or UCS2903; when use DMX decorder, can connect to DMX system
4) Support online control
 Â
Color
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
 Â
Installation Notice
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
