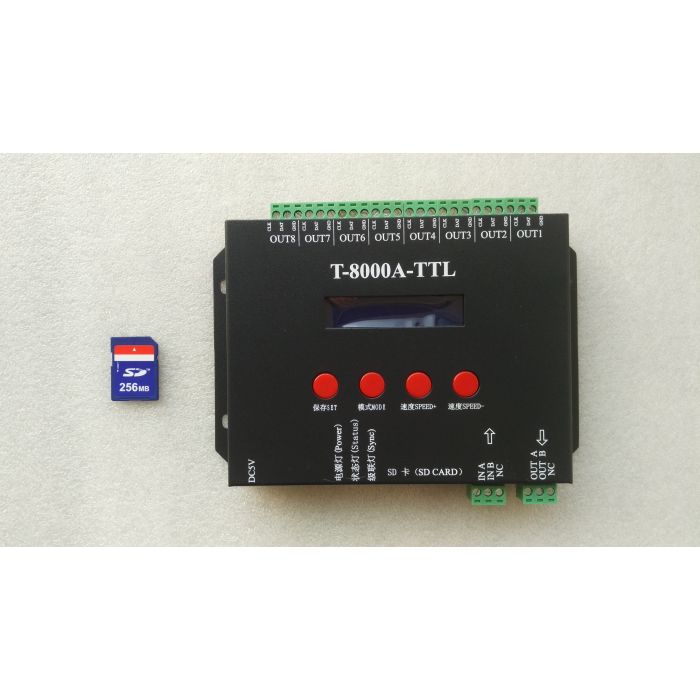

discontinued T-8000A programmable digital SPI master LED controller

Online LED Display Control Card

1, DC 5V working voltage

2, controller Full Color LED Light

3, CE&ROHS

T-8000 dots controller

1, Suitable to 32 grade-256 grade-4096 grade gray level control, software Gamma Correction.

2, Combined with video editing software LedEdit, it supports all various of rules, special shape and other point , line, surface light..

3, It is 8 ports controller, each port can connect 512/1024 lights.

4, Could play the content in SD card, it can be cascaded connected when it is more than one controller.

5, "SET" save operation, "MODE" change effect animations, "SPEED+" speed+, "SPEED-" speed-

Note:

T-8000 port controller, load 512 lights each port, the playback speed can be up to 30 frames/sec; if it connect more than 512 lights each port, the frame rate would automatically reduce according to the number of lights.

5, When it is applied to cascaded connection, only the buttons on the first controller could work, we use the first controller to play files and adjust play speed. Buttons of other sub-controller would be invalid automatically.

Supported IC

TM1803, TM1804, TM1809, TM1812

TM1829

UCS1903, UCS1903B, UCS1909, UCS1912

UCS2903, UCS2909, UCS2912

UCS3903

UCS6909, UCS6912, UCS7009, UCS5903

UCS8903

UCS512

WS2811

WS2821

P9813

P9823

LPD1886

GW6202

GW6201, GW6202B, GW6204

GW6203

MBI6021

INK1003

LX1003

LX2003, LX2006

TLS3100

DMX

SM16711

SM16726

SM16716

LPD6803

LPD8806

LPD1882

LPD6812

LPD6813

TA9909

TM1903, TM1904, TM1909, TM1912

WS2801, WS2803

DS189

TLS3001, TLS3008

APA102

BS0815

BS0825

BS0901

T series such as T-100K, T-200K, T-300K works with LedEdit software

LedEdit works with AutoCAD

LedEdit 2012 operating manual
