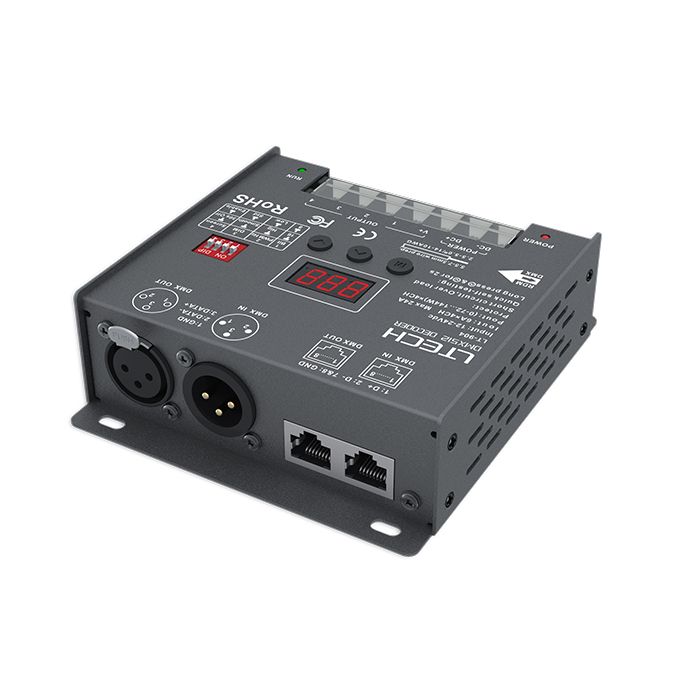

LT-904 LTech 4 channels constant voltage DMX512 RDM decoder

$36.95
In stock
SKU
2955
  • Buy 32 for $34.25 each and save 7%

Made in Zhuhai of China with 5 years warranty, genuine version, high quality, not cheap copycat

We are the distributor of LTech products, directly from factory, good price

Click here to know more detailed specification parameters about LTech LT-904

LTech LT-904 Product Introduction

1. Designed with 4 channels output, and Max. 6A current per channel, up to 576W output power.

2. Easy operation with digital display and the touch buttons.

3. Support 2 kinds of DMX ports: 3-pin XLR, RJ45.

4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition,etc.

5. With short circuit protection and over current protection, as well as warning function when fault.

6. With fast self-testing function.

7. High/low PWM frequency for optional

8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.



Technical Specifications

Model: LT-904

Input Signal: DMX512/RDM

DMX Interface: 3-pin XLR, RJ45

Input Voltage: DC 12~24V

Current Load: 6A×4CH Max. 24A

Output Power: (0~72W...144W) × 4CH, Max. 576W

Grey Level: 8bit (256 levels) / 16bit (65536 levels

Protection: Shortcut / Over current

Working Temp.: -30°C~65°C

Dimensions: L122×W110×H37mm

Package Size: L127×W123×H41mm

Weight (G.W.): 550g
